Case Studies

SOC Investigations

Three documented investigations using real external attack telemetry — structured analyst workflow from alert receipt to ticket closure. Click any finding to expand the exact analyst action taken.

Case Study 01 — Endpoint / Network

External RDP Brute Force Campaign

INC0010660 Priority 1 Critical T1110.001 Resolved Real Attack Telemetry

▼

273

Unique IPs

14,661

Attempts

Countries

Days active

Breaches

Real external attackers discovered the Azure lab environment's RDP port exposed to the internet and launched a sustained distributed brute force campaign targeting the Administrator account. 273 unique IPs across 38 countries generated 14,661 failed authentication attempts over 10 days.

Root cause: Azure NSG rule permitted inbound RDP from 0.0.0.0/0. Upon detection the NSG was restricted to authorized IPs — attack traffic dropped to zero immediately and verifiably.

ANALYST FINDING

No successful unauthorized logons confirmed across the entire 10-day attack window. Incident closed at Tier 1.

Primary Detection Query

index=* source="XmlWinEventLog:Security" EventCode=4625 LogonType=3
| where IpAddress!="10.0.0.5" AND IpAddress!="::1" AND IpAddress!="-"
| stats dc(IpAddress) as UniqueAttackerIPs, sum(count) as TotalAttempts

Attack Tooling Identified — click each finding to expand analyst action

▶FreeRDP and Rdesktop workstation names confirm Linux-based automated attack tooling

// Splunk — identify workstation names used by attackers

index=* EventCode=4625 LogonType=3 | stats count by WorkstationName | sort - count // Result: FreeRDP, Rdesktop, kali — Linux attack tools confirmed

▶Generic "workstation" name in 87% of attempts — mass-automated credential stuffing

// Splunk — calculate percentage of generic workstation names

index=* EventCode=4625 LogonType=3 | eval generic=if(WorkstationName="workstation" OR WorkstationName="-","yes","no") | stats count by generic | eventstats sum(count) as total | eval pct=round(count/total*100,1)

▶273 IPs across 38 countries — botnet-driven distributed campaign confirmed

// Splunk — GeoIP enrichment to confirm geographic distribution

index=* EventCode=4625 LogonType=3 | iplocation IpAddress | stats dc(IpAddress) as UniqueIPs by Country | sort - UniqueIPs

▶NTLM authentication via NtLmSsp — Logon Type 3 network logons confirmed

// Splunk — confirm authentication package

index=* EventCode=4625 LogonType=3 | stats count by AuthenticationPackageName, LogonProcessName | sort - count // Result: AuthPackage=NTLM, LogonProcess=NtLmSsp

Top Attacker Threat Intel

123.30.106.163

Top — 422 attempts

6/91

VirusTotal vendors

194

AbuseIPDB reports

MITRE ATT&CK

ID	Technique	Evidence
T1110.001	Brute Force: Password Guessing	14,661 failed logon attempts against Administrator
T1133	External Remote Services	RDP port 3389 targeted as primary access vector

No breach occurred. The following documents what would have triggered escalation and the exact response actions.

IOCs That Would Have Indicated Compromise

▶ Event ID 4624 from unknown external IP after brute force activity

▶ Logon Type 10 (RemoteInteractive) from attacker IP — RDP access gained

▶ New process spawned under Administrator from external session

▶ Lateral movement — logon from compromised host to Domain Controller

▶ New scheduled task or service — persistence mechanism established

Response Actions

▶Step 1: Isolate host — restrict Azure NSG to block all traffic immediately

// PowerShell — add deny-all inbound rule to NSG

$nsg = Get-AzNetworkSecurityGroup -Name "WIN-SERVER-CLIENT-nsg" -ResourceGroupName "SUFFice_group" $rule = New-AzNetworkSecurityRuleConfig -Name "DenyAllInbound" -Priority 100 ` -Direction Inbound -Access Deny -Protocol * ` -SourceAddressPrefix * -DestinationAddressPrefix * ` -SourcePortRange * -DestinationPortRange * $nsg.SecurityRules.Add($rule) Set-AzNetworkSecurityGroup -NetworkSecurityGroup $nsg

▶Step 2: Disable compromised account in Active Directory

// PowerShell — disable account and force logoff

Disable-ADAccount -Identity "Administrator" Set-ADUser -Identity "Administrator" -LockedOut $true query session /server:WIN-SERVER-CLIE logoff [sessionID] /server:WIN-SERVER-CLIE

▶Step 3: Check for lateral movement to Domain Controller

// Splunk — confirm if compromised host authenticated to DC

index=* source="XmlWinEventLog:Security" EventCode=4624 LogonType=3 | where WorkstationName="WIN-SERVER-CLIE" AND ComputerName="SUFFice" | table _time TargetUserName IpAddress LogonType ComputerName | sort _time

Evidence collected during investigation — screenshots from Splunk, ServiceNow, Azure NSG, VirusTotal, and AbuseIPDB.

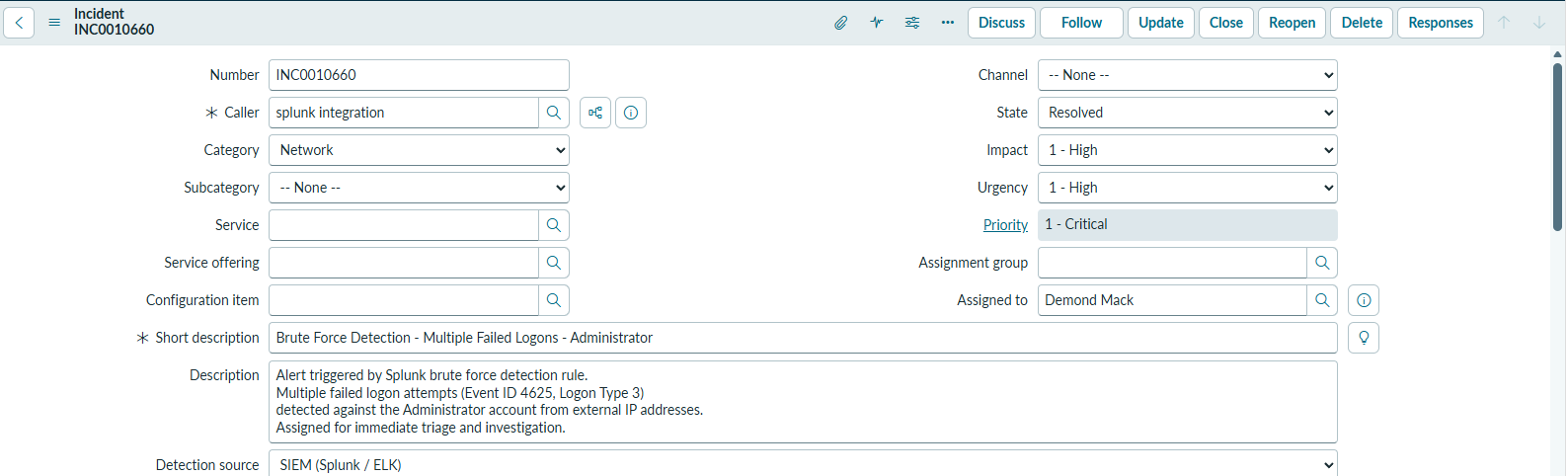

ServiceNow INC0010660

Priority 1 Critical — Assigned to Demond Mack

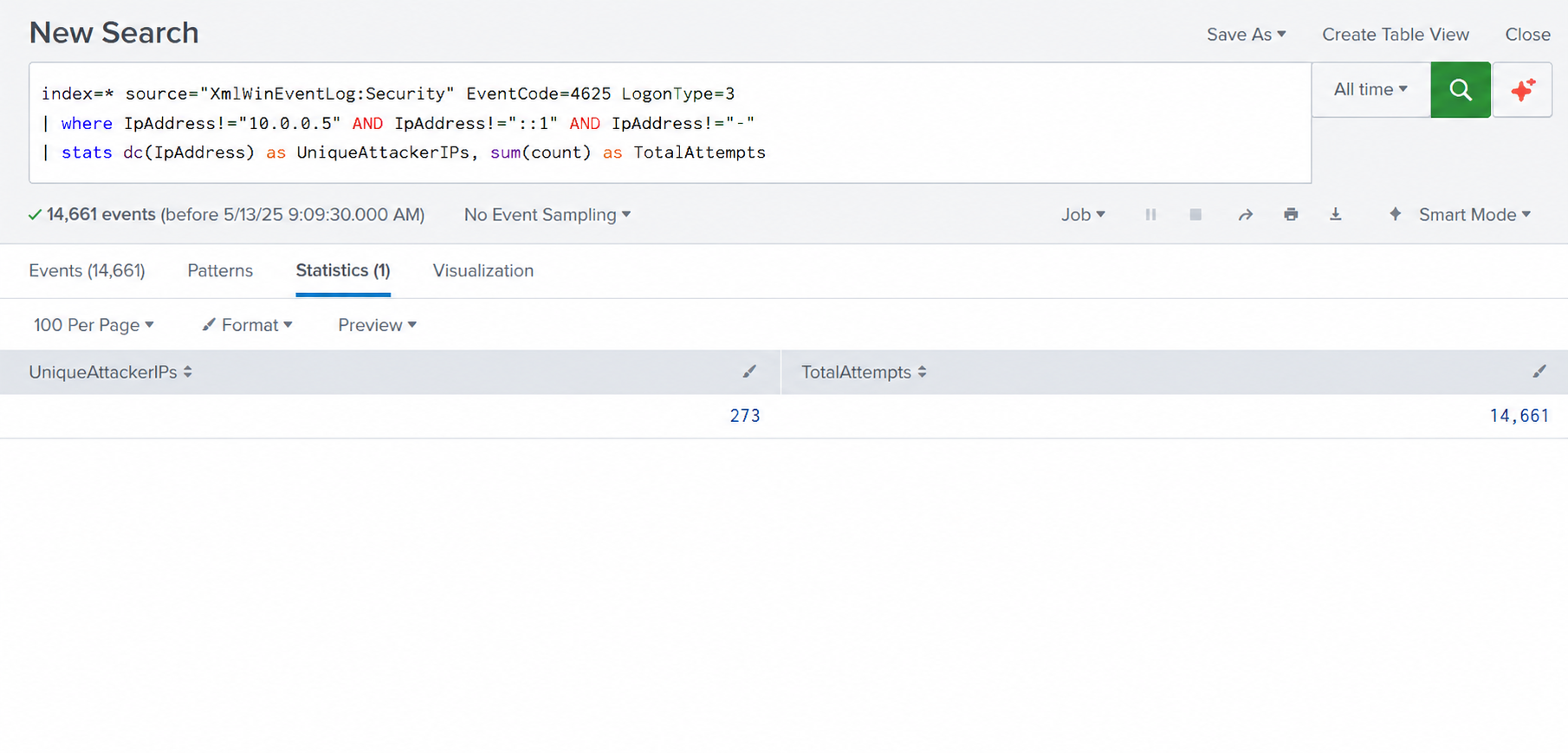

Splunk — 273 Unique IPs

UniqueAttackerIPs=273, TotalAttempts=14,661

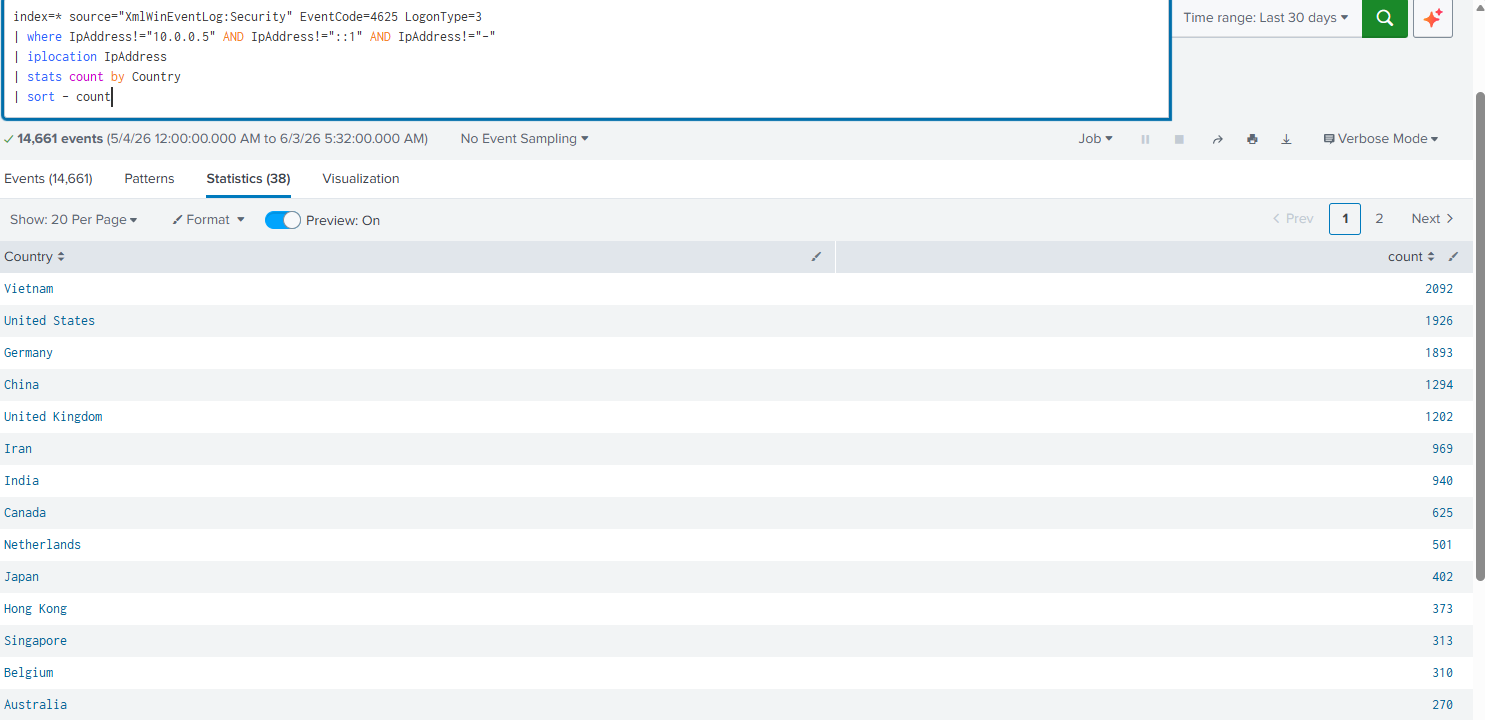

GeoIP Breakdown

38 countries — Vietnam, US, Germany top sources

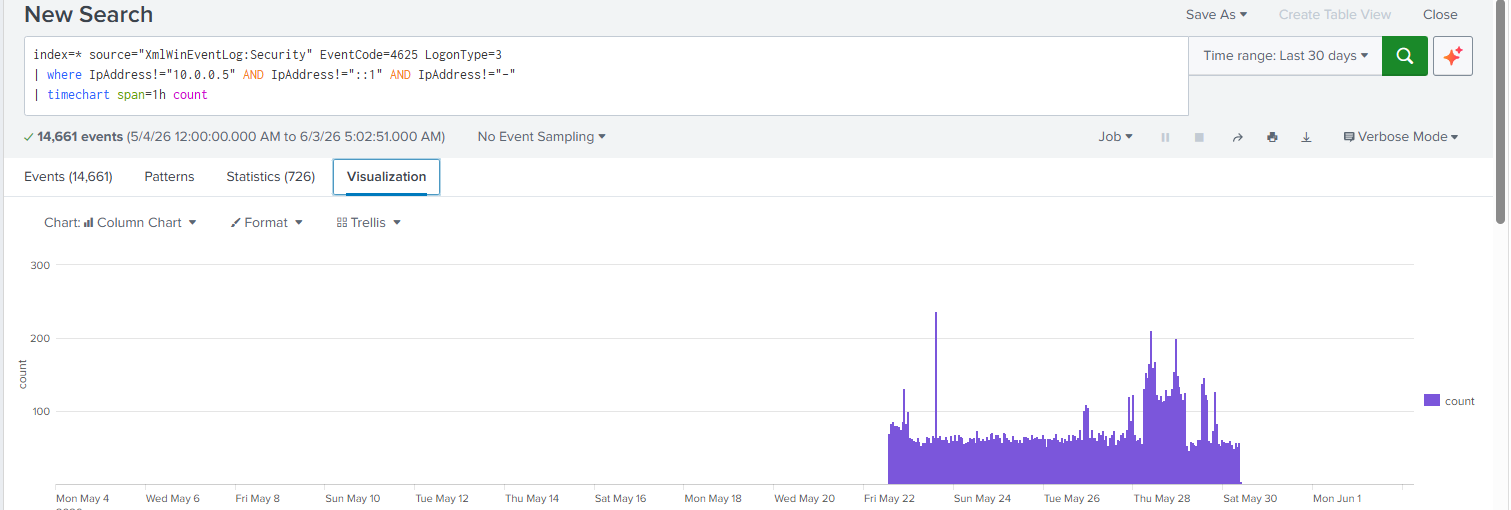

Attack Timeline

May 22 to June 1 — drops to zero post-remediation

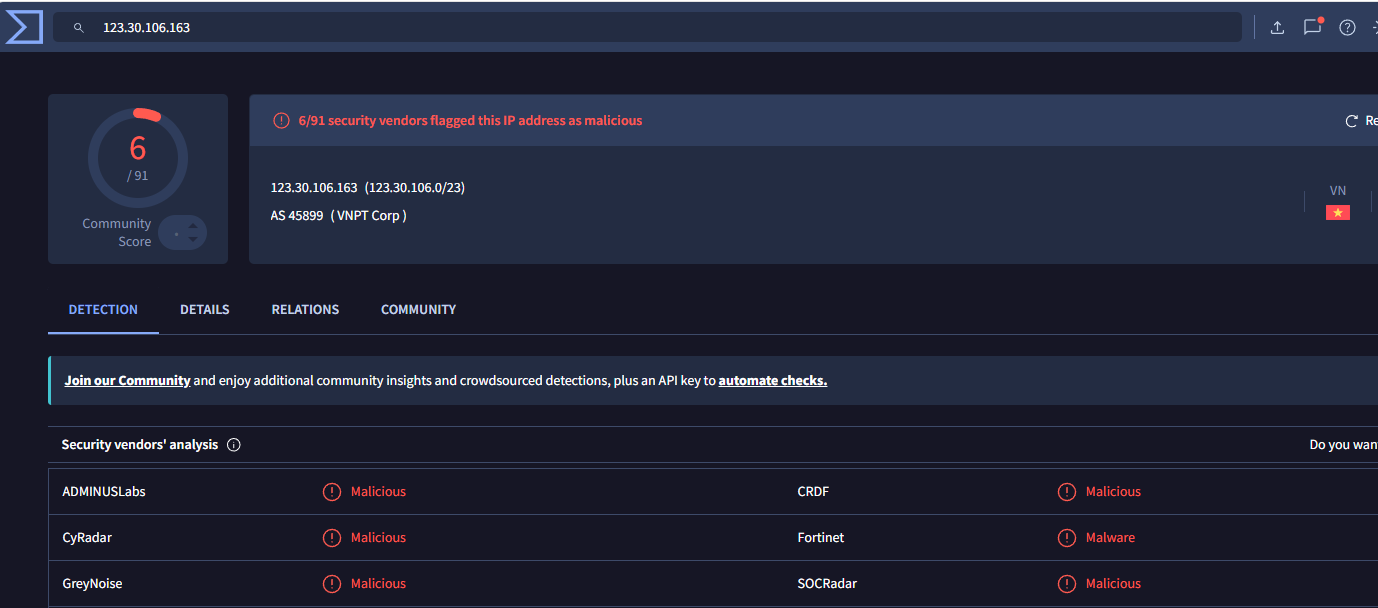

VirusTotal — 6/91 Vendors

123.30.106.163 — VNPT Corp Vietnam

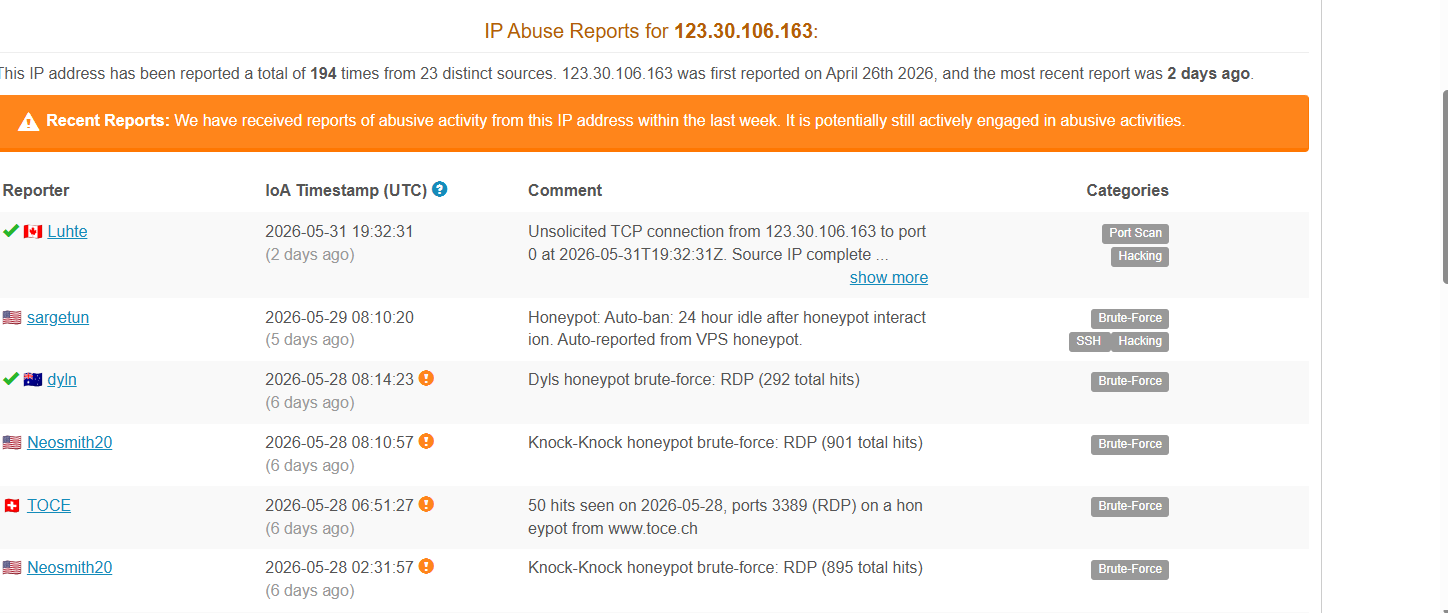

AbuseIPDB — 194 Reports

Active RDP brute force confirmed

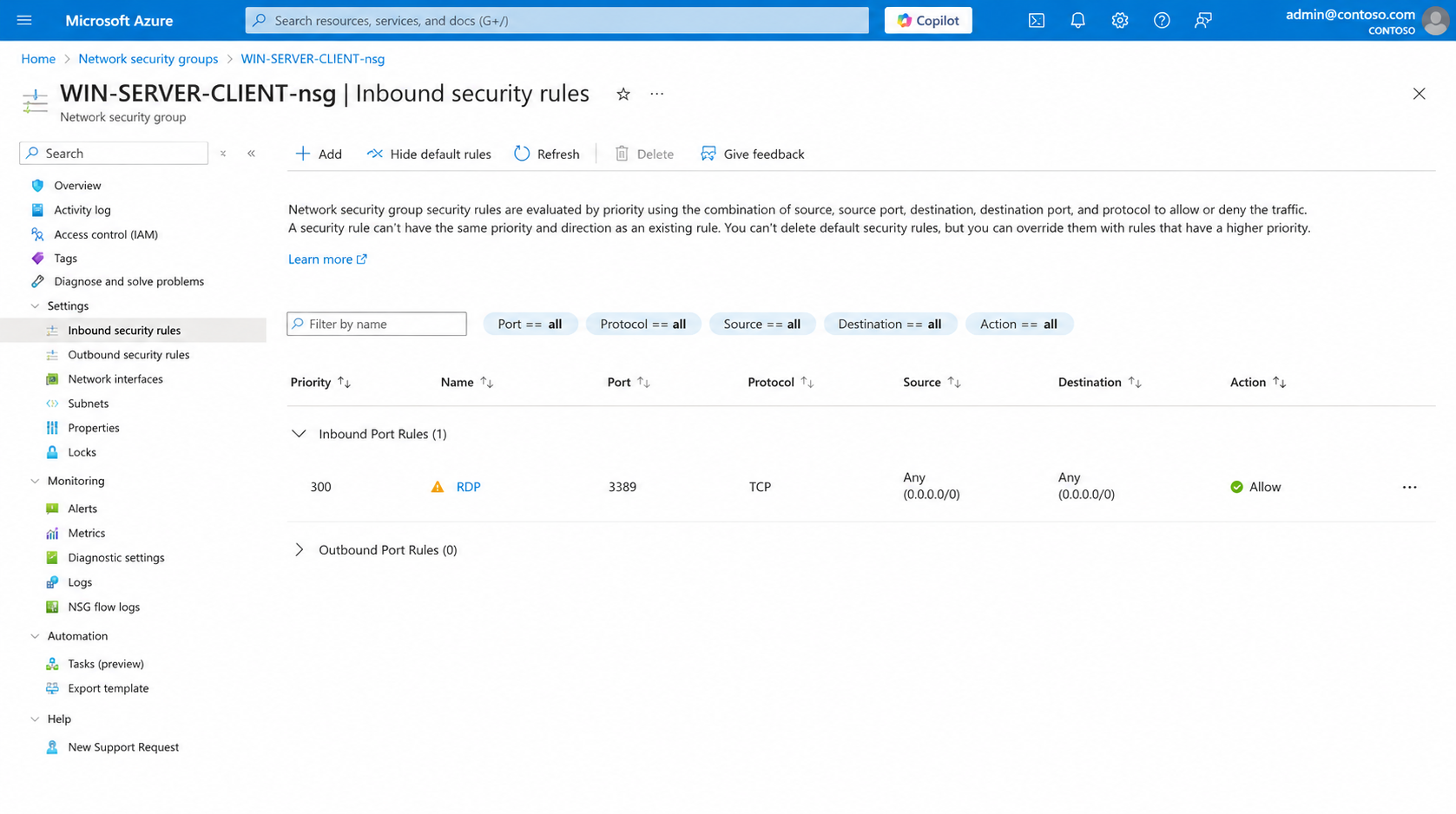

Azure NSG — Before

Port 3389 open to 0.0.0.0/0

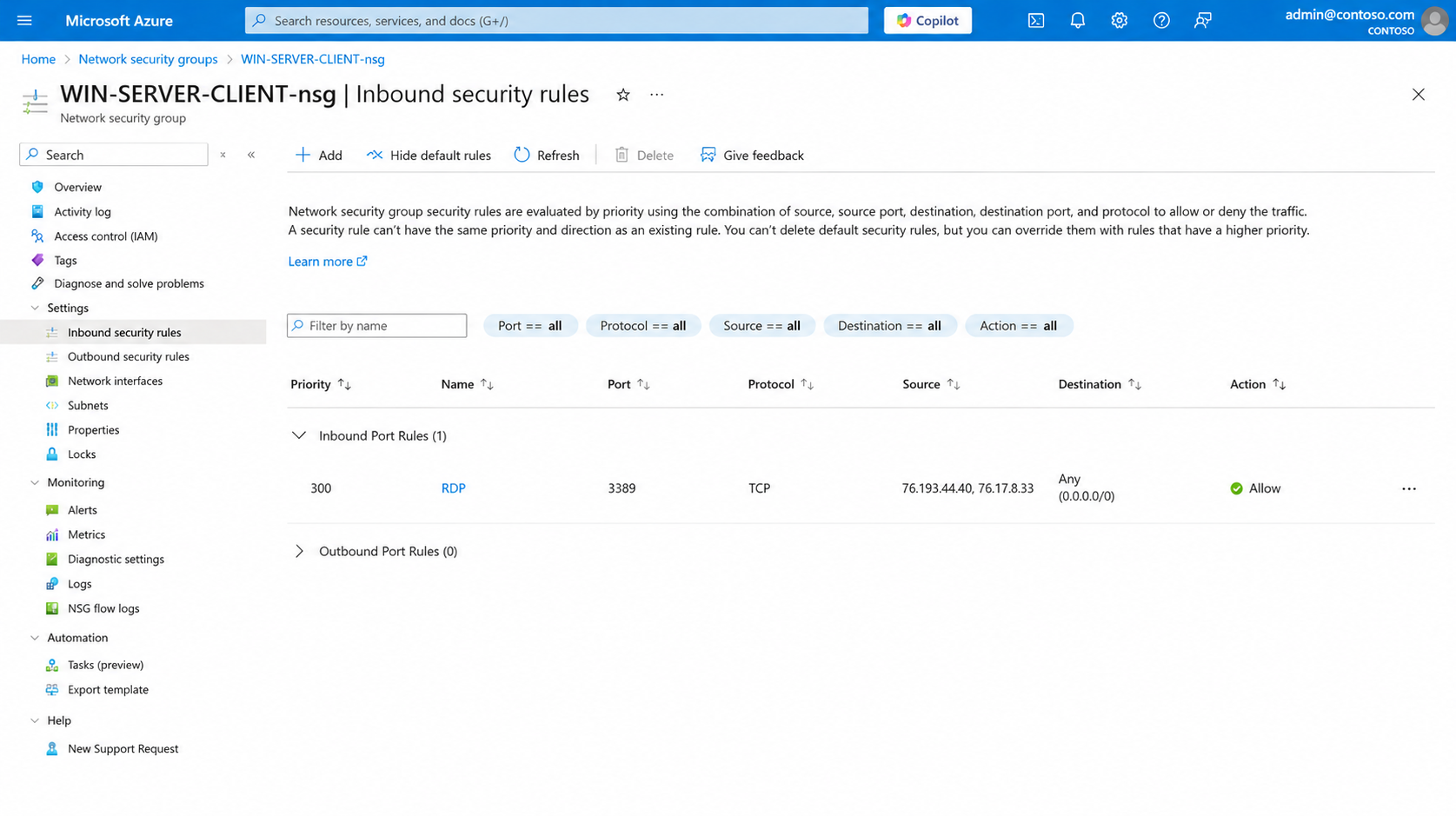

Azure NSG — After

Restricted to authorized IPs only

Case Study 02 — Network IDS

Multi-Vector External Attack Campaign

INC0013219 Priority 1 Critical T1595 · T1046 · T1110.001 Resolved 23 Suricata Signatures

▼

2,327

IDS Alerts

233

Unique IPs

Signatures

15,422

AbuseIPDB Reports

Breaches

Suricata IDS detected a comprehensive multi-vector attack — RDP brute force, SSH scanning, MySQL, PostgreSQL, MSSQL, VoIP/SIP, SNMP, and active Nmap reconnaissance all firing simultaneously. 23 distinct signatures revealed a fully automated framework probing every available service.

Primary attacker 194.165.16.167 hosted on Flyservers S.A. (AS48721) — documented bulletproof hosting in Lithuania. 15,422 AbuseIPDB reports at 100% confidence. Same IP confirmed actively attacking other organizations during the investigation window.

ANALYST FINDING

No lateral movement, no breach, no malicious execution detected across all 6 alert categories.

Top Signatures by Volume

Signature	Count	Category
ET INFO RDP Response To External	1,385	Misc Activity
ET POLICY MS RDP Admin Login	662	Protocol Decode
ET DROP Dshield Block Listed	209	Misc Attack
ET SCAN Potential SSH Scan	6	Network Scan
ET SCAN RDP Connection from Nmap	1	Network Scan

Investigation Findings — click to expand analyst actions

▶194.165.16.167 confirmed on Flyservers S.A. bulletproof hosting — Vilnius, Lithuania

// Splunk — isolate top attacker and pull all associated signatures

index=suricata src_ip="194.165.16.167" | stats count by alert.signature, alert.category | sort - count // Cross-reference: VirusTotal 12/91, AbuseIPDB 15,422 reports 100% confidence

▶Multi-service scanning confirmed — SSH, MySQL, MSSQL, VoIP, SNMP all probed simultaneously

// Splunk — map destination ports to identify full attack surface

index=suricata | eval service=case(dest_port=22,"SSH",dest_port=3306,"MySQL", dest_port=1433,"MSSQL",dest_port=5060,"VoIP/SIP", dest_port=161,"SNMP",dest_port=3389,"RDP",true(),"Other") | stats count by service, alert.category | sort - count

▶ET DROP Dshield Block Listed Source — 209 hits — known malicious infrastructure confirmed

// Splunk — extract all Dshield-listed IPs

index=suricata alert.signature="ET DROP Dshield*" | stats dc(src_ip) as unique_ips, count by src_ip | sort - count | head 10

MITRE ATT&CK

ID	Technique	Evidence
T1595	Active Scanning	Nmap sig — multi-port across 8+ services
T1046	Network Service Discovery	SSH, MySQL, MSSQL, VoIP, SNMP probed simultaneously
T1110.001	Brute Force	662 RDP Administrator login signatures

No breach occurred. The following shows what compromise indicators would have looked like and the exact response.

IOCs That Would Have Indicated Compromise

▶ Successful logon Event ID 4624 from any of the 233 attacker IPs

▶ Suricata C2 traffic signature firing post initial access

▶ Outbound connection from Windows Client to attacker IP on non-standard port

▶ ET COMPROMISED signature on internal east-west traffic

Response Actions

▶Step 1: Block attacker IPs at NSG and verify no active sessions

// Splunk — confirm no successful auth from attacker IPs before blocking

index=* EventCode=4624 | where match(IpAddress,"194\.165\.16\.167|123\.30\.106") | table _time TargetUserName IpAddress LogonType

▶Step 2: If C2 traffic detected — capture network traffic for forensics

// PowerShell — start packet capture on compromised host

netsh trace start capture=yes tracefile=C:\evidence\capture.etl maxsize=500 # Run for 5 minutes then stop netsh trace stop

Evidence collected — Suricata alerts, threat intelligence, ServiceNow ticket documentation.

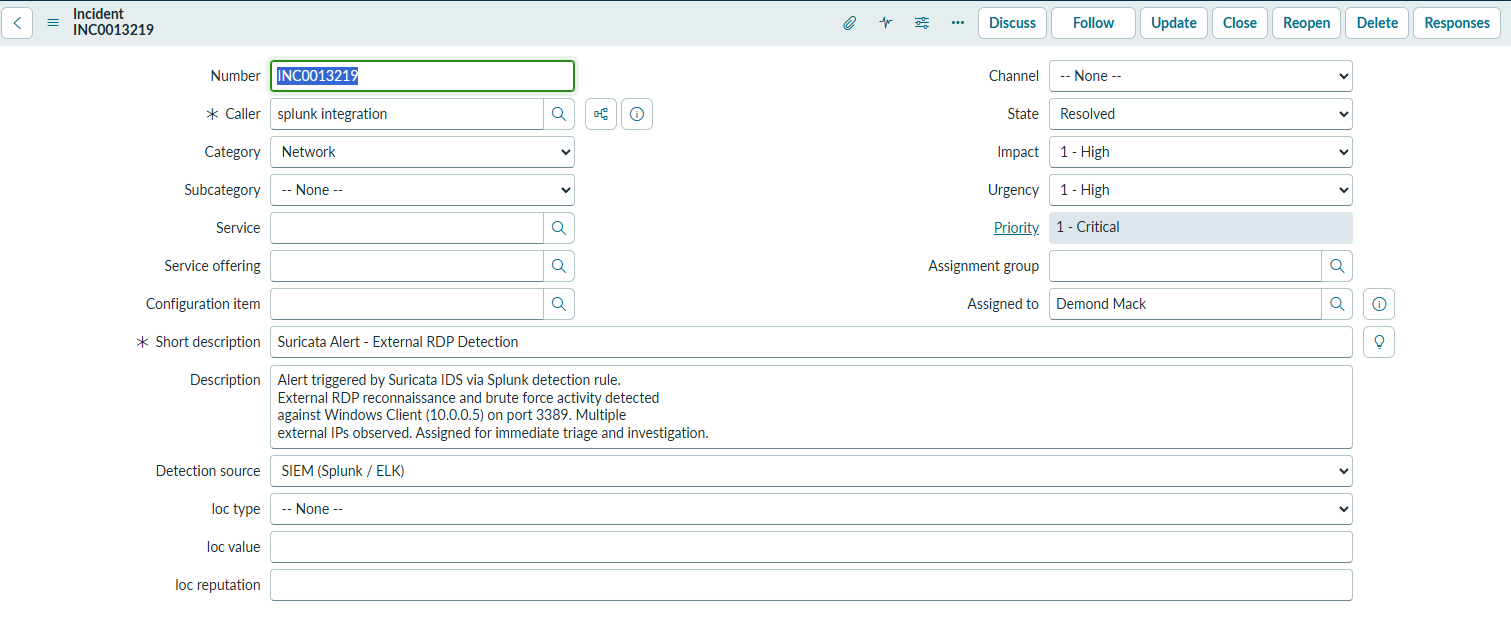

ServiceNow INC0013219

Priority 1 Critical — In Progress

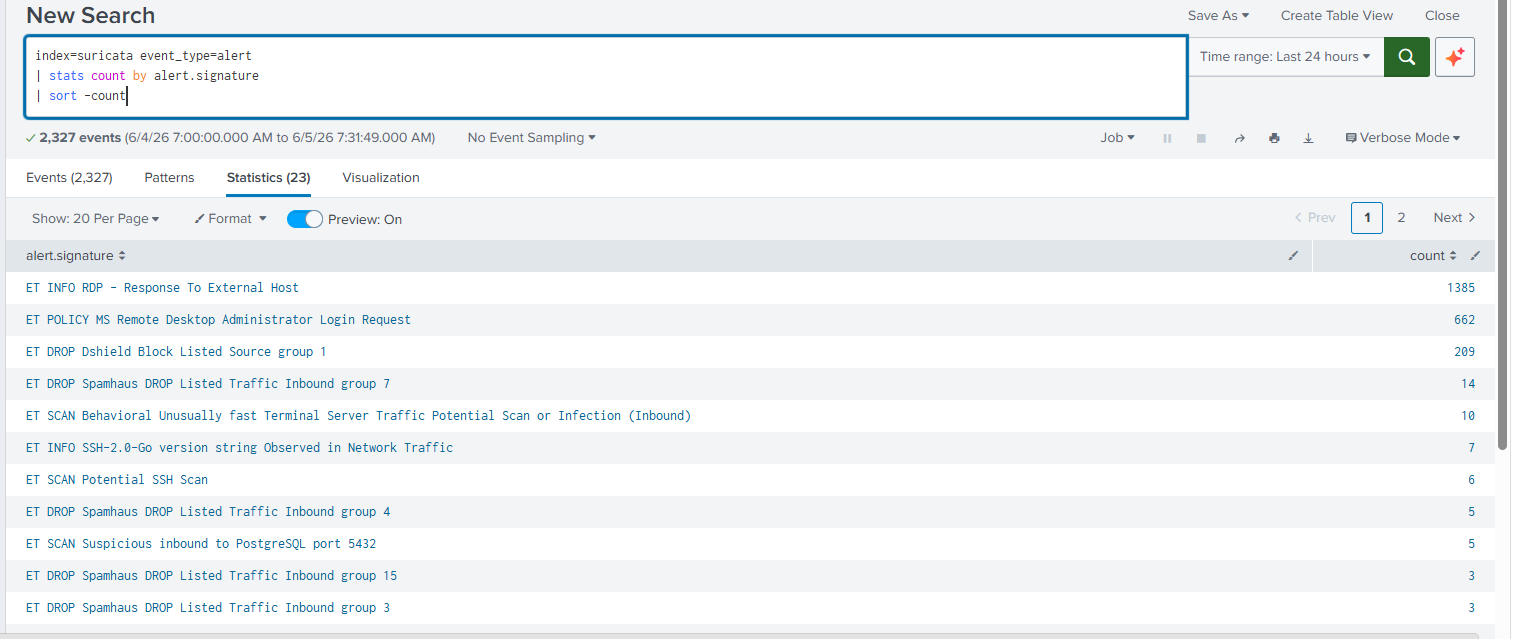

Splunk — 23 Signatures

2,327 alerts across 23 distinct signatures

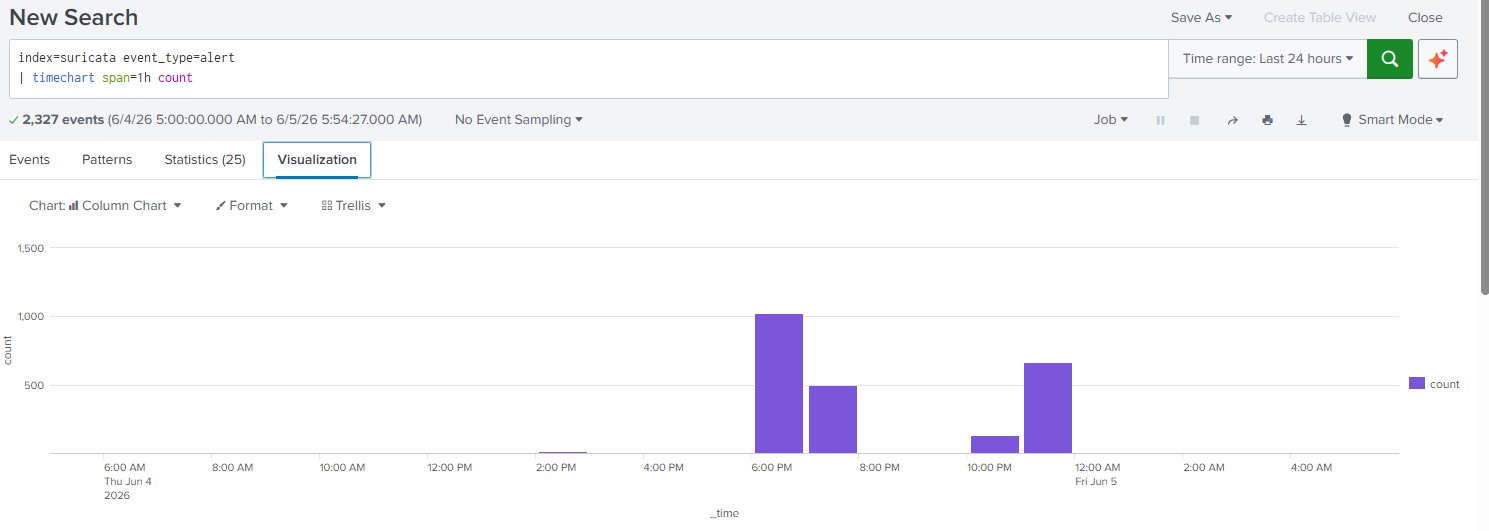

Attack Timeline

Peak 1,000+ alerts/hr — zero after NSG

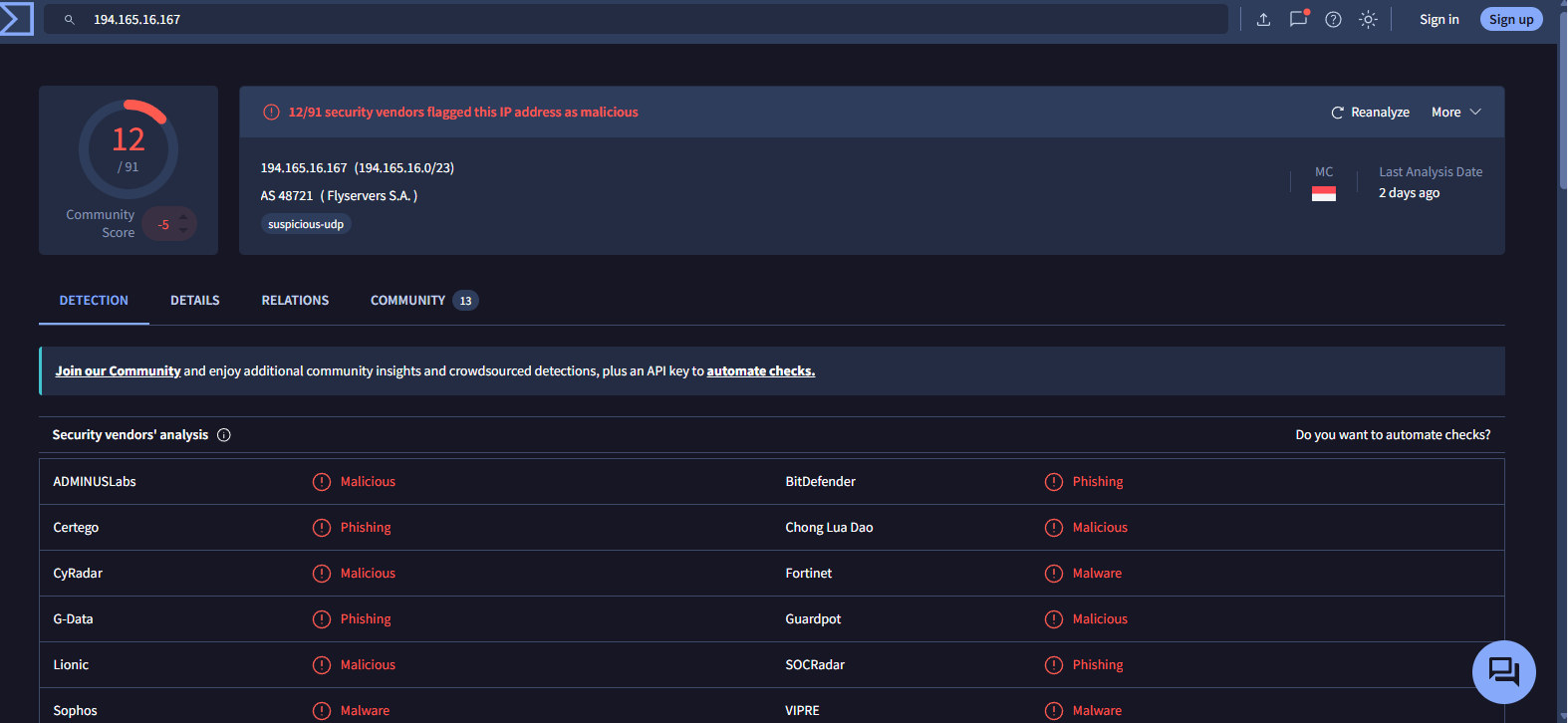

VirusTotal — 12/91

Flyservers bulletproof hosting confirmed

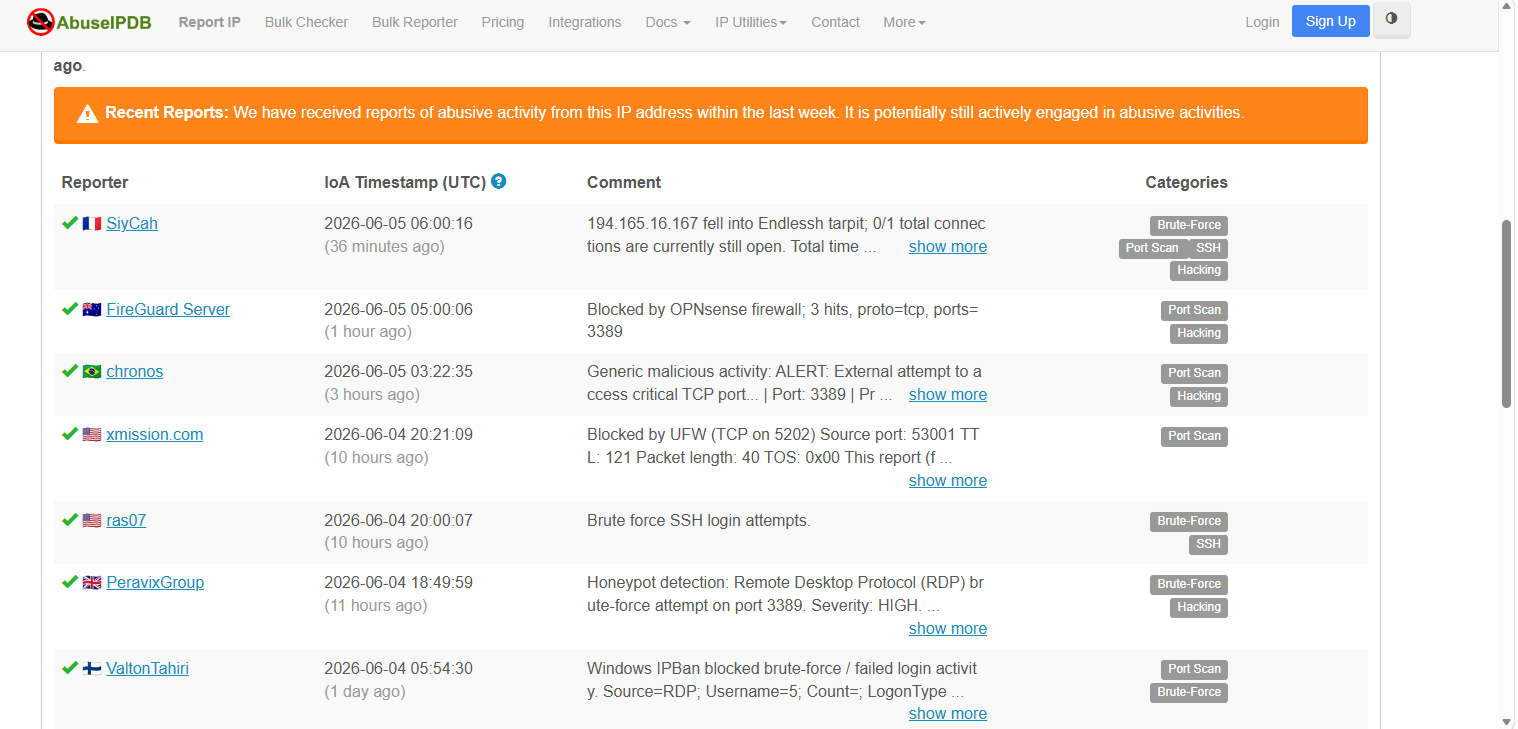

AbuseIPDB — 100%

15,422 reports — attacking multiple orgs

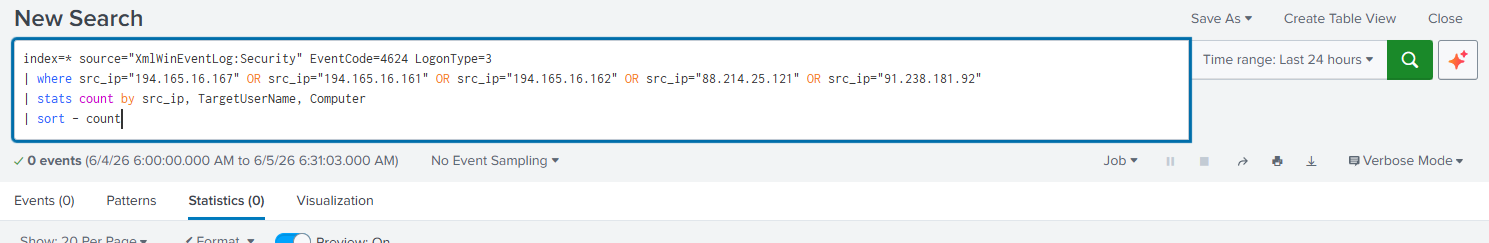

No Lateral Movement

0 results — attackers never authenticated

Case Study 03 — Phishing / Credential Harvesting

Microsoft 365 Credential Phishing Campaign

Priority 1 Critical T1566.001 · T1078 · T1056.003 Resolved Credentials Captured

▼

55s

Time to click

<3m

Time to submit

100%

Capture rate

Investigation phases

Unauthorized access

A simulated phishing campaign delivered a convincing Microsoft 365 password expiry notification to an internal user. The spoofed sender and urgency messaging caused the target to click within 55 seconds and submit credentials within 3 minutes — a textbook demonstration of how social engineering bypasses technical controls.

GoPhish captured the full credentials in cleartext. An 8-phase post-compromise investigation confirmed no unauthorized credential use, no lateral movement, no malicious process execution, and no data exfiltration.

ANALYST FINDING

Credential theft confirmed. No post-compromise activity detected. Critical gap identified: absence of MFA means stolen credentials would allow immediate account takeover with no additional barriers.

Attack Chain Timeline

June 6, 2026 — 8:36:30 PM

Phishing email delivered

Sent from it-support@suffice.local — "Action Required: Your Microsoft 365 Password Expires Today" — via Papercut SMTP to demondmack1976@suffice.local

8:37:25 PM — 55 seconds later

Phishing link clicked

Target visited http://10.0.0.5/?rid=EzTGqOq — fake M365 login page rendered — Windows 10 / Chrome 149.0.0.0

8:39:05 PM — 1m 40s after clicking

Credentials submitted and captured

Username: demondmack1976@suffice.local — Password captured in cleartext — victim redirected to microsoft.com, unaware of compromise

Post-compromise — 8 investigation phases

No breach confirmed across all phases

Credential use, process execution, lateral movement, file downloads, network connections — all verified clean. Resolved Tier 1.

Investigation Findings — click to expand analyst actions

▶Verified harvested credentials were not used by unauthorized parties

// Splunk — all logons for demondmack1976 after phishing timestamp

index=* source="XmlWinEventLog:Security" EventCode=4624 | where TargetUserName="demondmack1976" | where _time > strptime("2026-06-06 20:36:30","%Y-%m-%d %H:%M:%S") | table _time TargetUserName IpAddress LogonType WorkstationName // Result: Only known analyst IPs 96.89.65.77 and 76.17.8.33 — clean

▶No suspicious process execution under targeted account — 0 results confirmed

// Splunk — any processes spawned under demondmack1976

index=* source="XmlWinEventLog:Microsoft-Windows-Sysmon/Operational" EventCode=1 | where User="SUFFICE\\demondmack1976" | table _time User Image CommandLine ParentImage // Result: 0 events — no process execution under this account

▶No lateral movement — all network logons verified as analyst sessions

// Splunk — network logons using harvested account credentials

index=* source="XmlWinEventLog:Security" EventCode=4624 LogonType=3 | where TargetUserName="demondmack1976" | table _time TargetUserName IpAddress WorkstationName // Result: IPs 96.89.65.77 and 76.17.8.33 only — both verified analyst IPs

MITRE ATT&CK

ID	Technique	Evidence
T1566.001	Spearphishing Link	Email with malicious link to credential harvesting page
T1078	Valid Accounts	Legitimate internal credentials captured in cleartext
T1056.003	Web Portal Capture	Fake M365 login page captured submitted credentials
T1204.001	User Execution: Malicious Link	Target clicked 55 seconds after delivery

Credentials harvested but never used maliciously. Each phase shows what real compromise would have looked like and the exact response.

Phase 4 — If Credentials Were Used

▶ Event ID 4624 from unknown external IP using demondmack1976 credentials

▶ Logon from foreign geographic location or at unusual hours

▶ Multiple rapid logons from different countries — impossible travel

▶Response: Disable account, force password reset, preserve logs, escalate

// PowerShell — disable account and reset password immediately

Disable-ADAccount -Identity "demondmack1976" Set-ADAccountPassword -Identity "demondmack1976" ` -NewPassword (ConvertTo-SecureString "TempP@ss2026!" -AsPlainText -Force) -Reset Set-ADUser -Identity "demondmack1976" -ChangePasswordAtLogon $true

Phase 5 — If Malicious Process Executed

▶ chrome.exe spawning powershell.exe — browser-to-shell execution

▶ CommandLine containing -EncodedCommand or Invoke-WebRequest

▶ Process path in AppData\Local\Temp\ or Downloads\

▶Response: Decode encoded command, hash file, isolate host

// PowerShell — decode base64 encoded command

[System.Text.Encoding]::UTF8.GetString( [System.Convert]::FromBase64String("ENCODED_STRING_HERE") ) # Hash suspicious file Get-FileHash -Algorithm SHA256 "C:\Users\demondmack1976\AppData\Local\Temp\suspicious.exe" # Submit hash to VirusTotal for analysis

Scope — Isolated or Widespread

Check: Other users targeted? — index=gophish msg="Email sent" | stats count by email

Check: Other machines visited phishing URL? — Sysmon DNS logs across all hosts

If widespread: Full incident declaration → IR team → executive notification → org-wide password reset

Evidence collected — GoPhish dashboard, Papercut inbox, credential capture, Splunk investigation queries.

📧

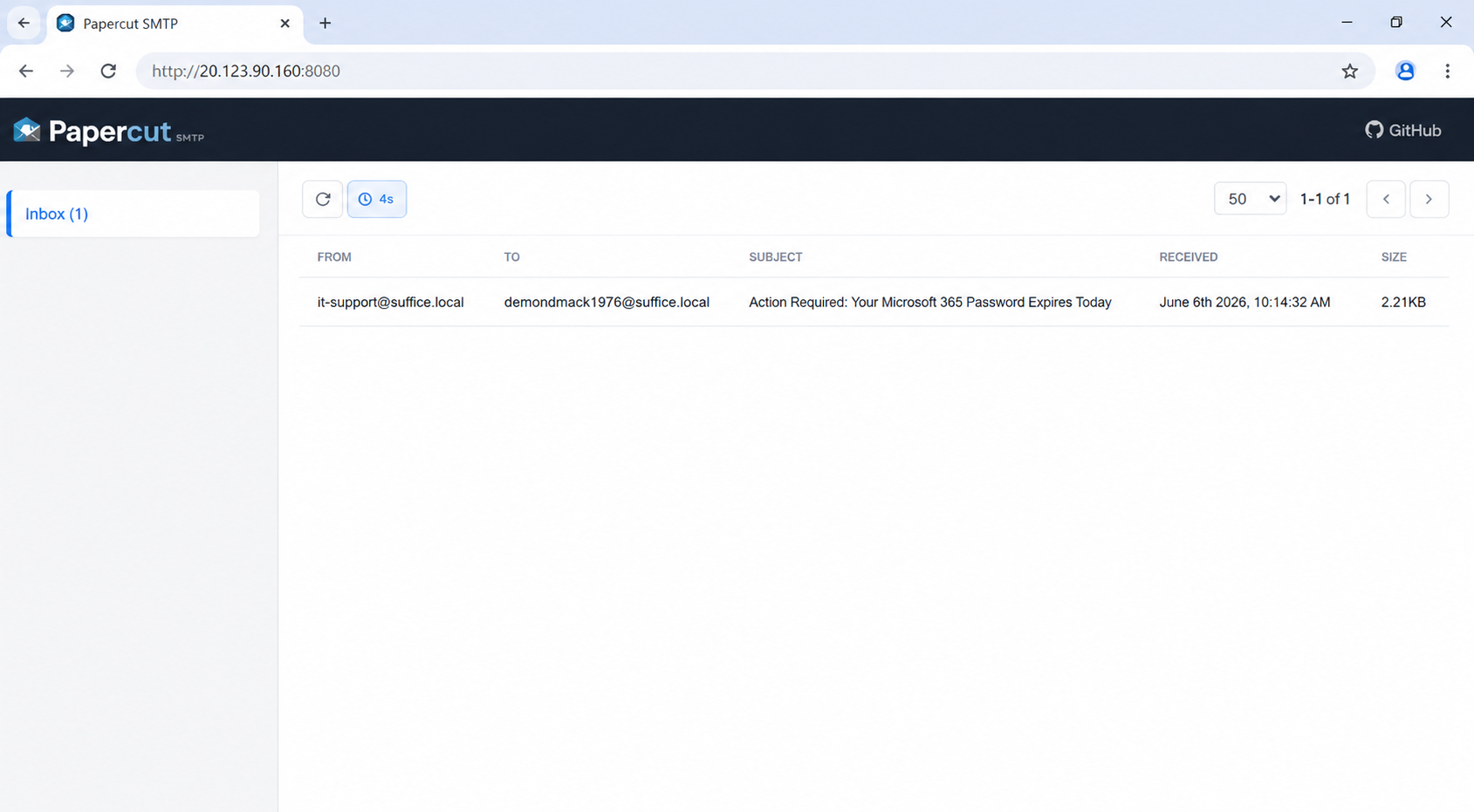

Papercut Inbox

Phishing email delivered — M365 subject line

🎣

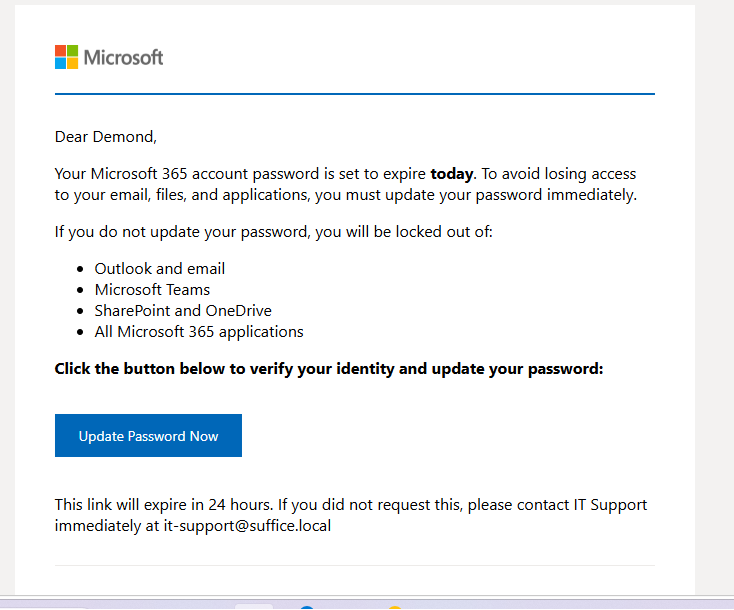

Rendered Phishing Email

Microsoft branding and urgency message

🔐

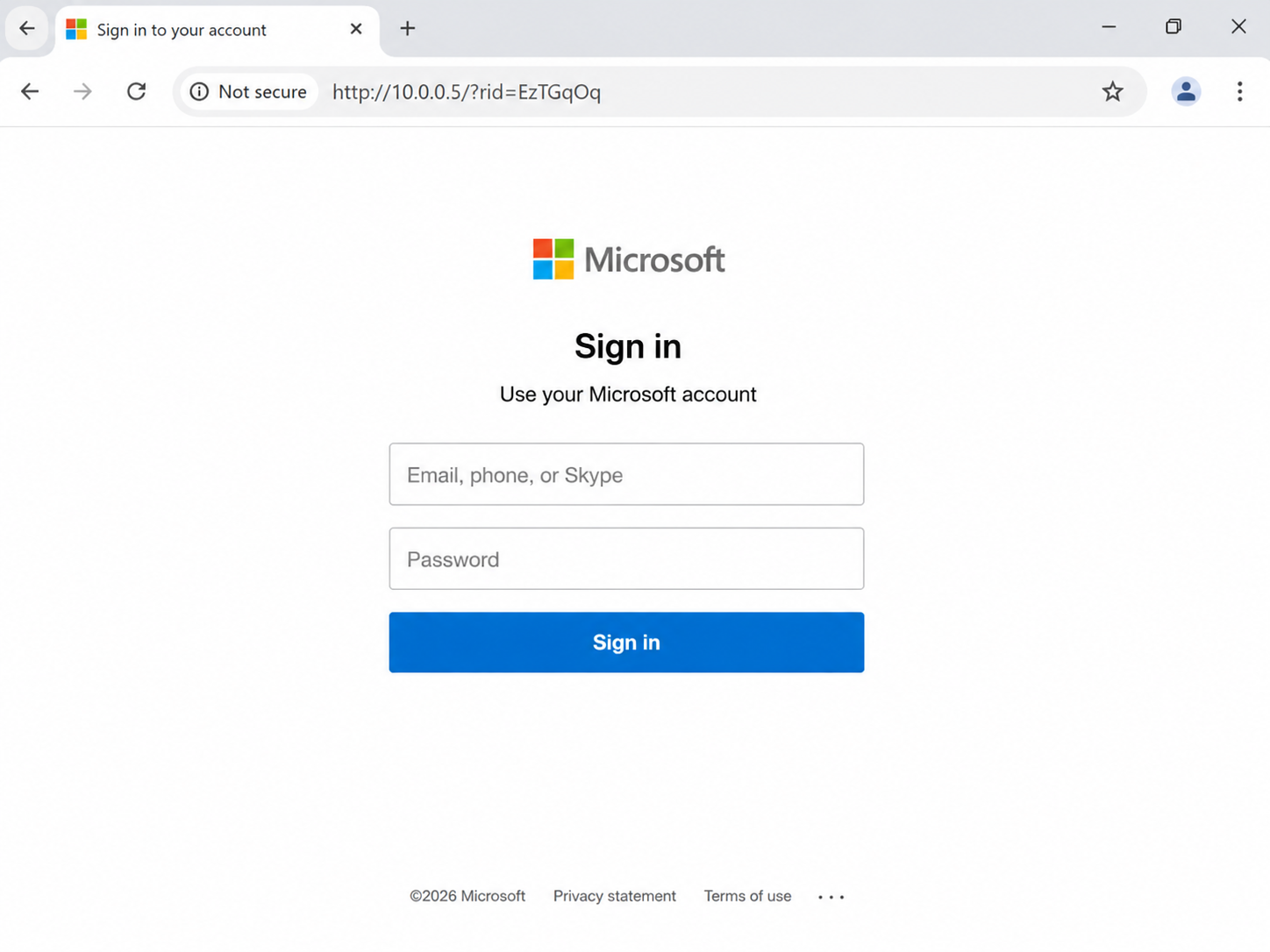

Fake M365 Login Page

Landing page at 10.0.0.5/?rid=EzTGqOq

💀

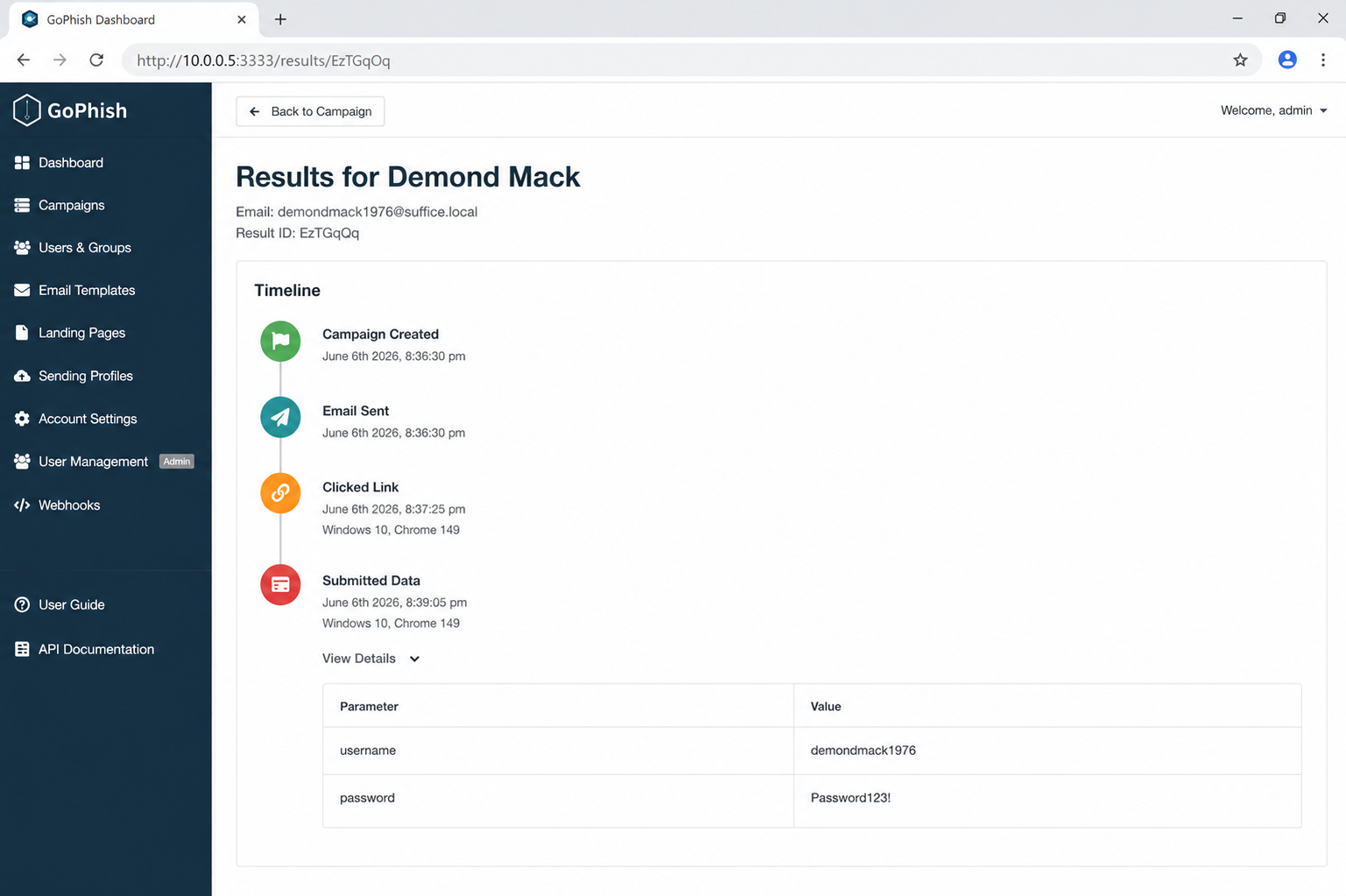

Credentials Captured

Username and password harvested in cleartext

📊

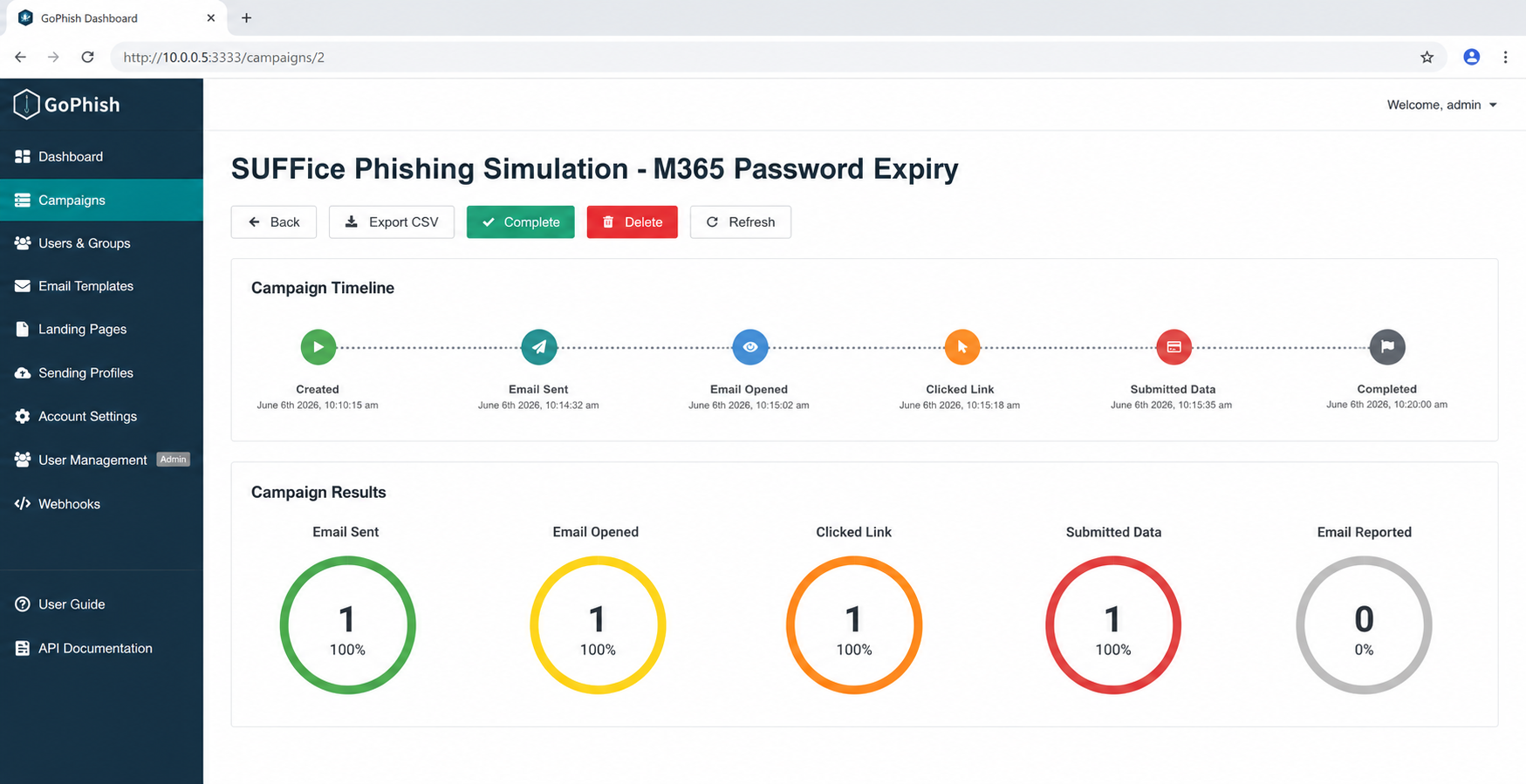

GoPhish Dashboard

Email Sent=1, Clicked=1, Submitted=1

✅

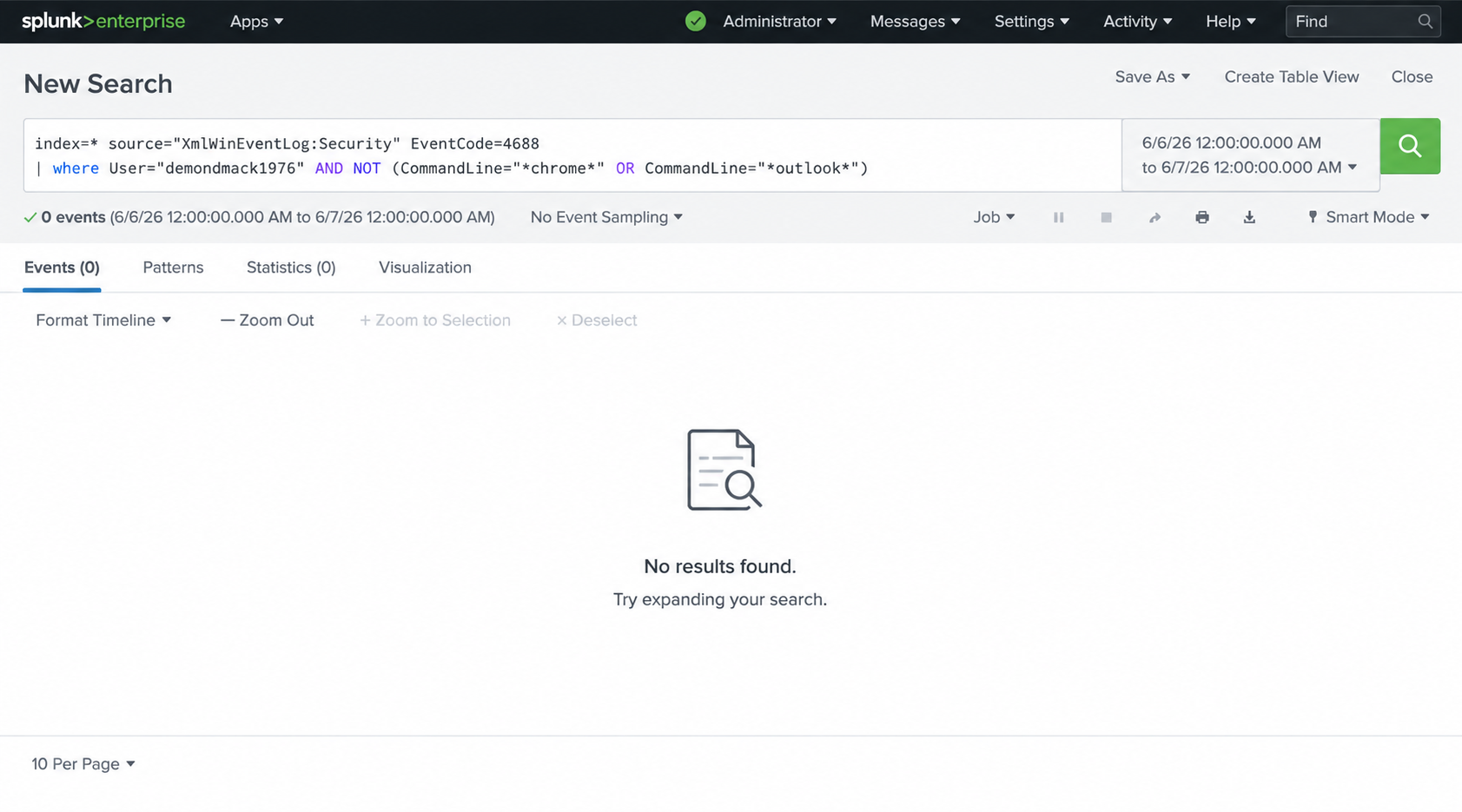

No Breach Confirmed

8 investigation phases — all clean results
